KOREA FAN ENGINEERING

Category	Flow Rate (Max)	Pressure (Max)	Vacuum (Max)

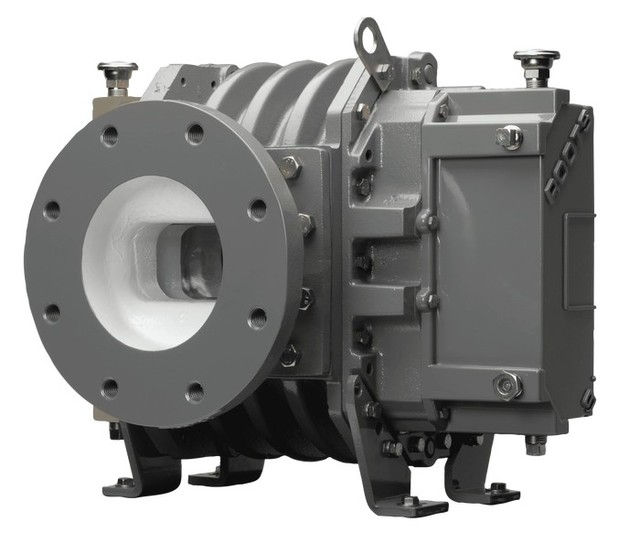

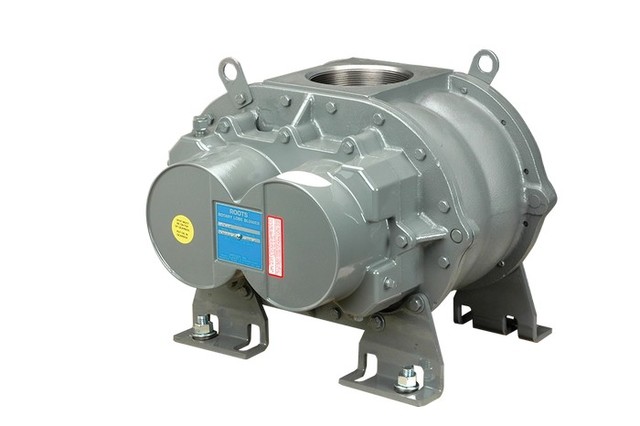

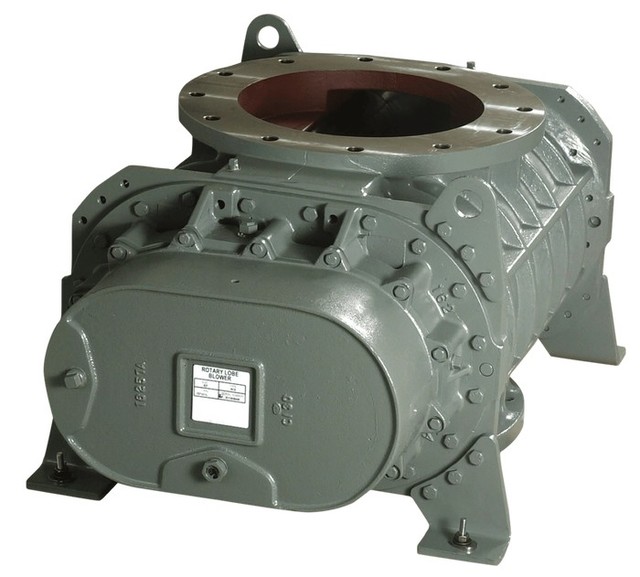

Small Rotary	10,713 m³/hr	1.3 barG	0.8 bar

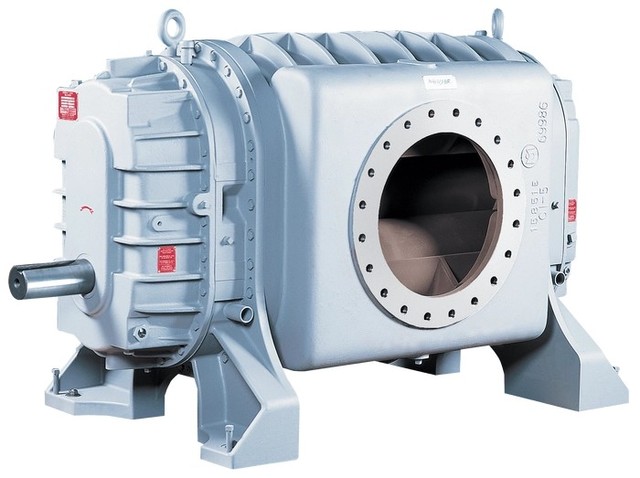

Large Rotary	120,000 m³/hr	1.3 barG	0.8 barG

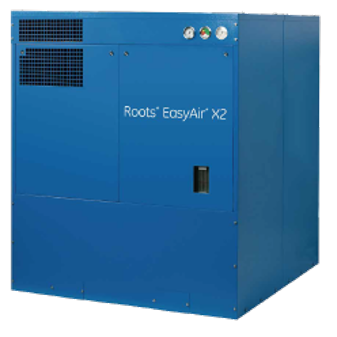

EASY Air / Customized	425,000 m³/hr	7 barG	-

Consistent Airflow and Versatile Applications

Consistent Performance : Positive displacement technology provides constant airflow regardless of pressure fluctuations, ensuring process consistency and superior product quality

Wide Application Range : Ideal for wastewater treatment, pneumatic conveying, combustion, vacuum systems., and more

Multi-Gas Compatibility : Capable of handling various gases, from steam to nitrogen, hydrogen, and other hydrocarbons

Steel Degassing : HIgh-performance vacuum boosting for steel degassing processes

NO.	Project No.	Client	Site/Plant	Project Description	Equipment Supplied	Specification
NO.	Project No.	Client	Site/Plant	Project Description	Equipment Supplied	Air Volume (m³ /min)	Pressure (mmAq)	Power (kW)
1	15-026	Sampyo Cement	Samcheok Plant	#7 Kiln I.D. Fan	Impeller	9,600	775	1,700
2	15-027	Sungshin Cement	Danyang Plant	#6 R/M I.D. Fan	Rotor	13,080	900	3,000
3	16-001	Sampyo Cement	Samcheok Plant	4K Hot Gas Fan	Rotor	2,834	250	601
4	16-005	Sampyo Cement	Samcheok Plant	4, 5, 6, 7K Cooler	Cooler Fan	1,667	663	280
5	16-012	Sampyo Cement	Samcheok Plant	#1, 2 Kiln I.D. Fan	Rotor	4,531	950	1,500
6	16-019	Microone	Sampyo Cement	Cement Dust Collection Fan	I.D. Fan	917	530	132
7	16-043	Sampyo Cement	Samcheok Plant	#3K R/M I.D. Fan Wear-Resistance (Patent applied)	Rotor	3,000	550	450
8	16-052	Sungshin Cement	Danyang Plant	#3K Kiln I.D. Fan	Impeller	5,500	600	950
9	17-022	Sampyo Cement	Samcheok Plant	Chlorine Bag Filter I.D. Fan	I.D. Fan	1,052	638	185
10	17-038	Sampyo Cement	Samcheok Plant	#2K R/M Fan	Rotor	4,500	280	400
11	18-002	Hwanyoung Steel	Dangjin Plant	Main Fan	Overhaul	12,000	500	1,500
12	18-004	Wear Solution	Hyundai Cement	Waste Heat I.D. Fan	Rotor	1,620	450	200
13	18-005	Sampyo Cement	Samcheok Plant	# 3K Kiln I.D. Fan High-Efficiency (Patent applied)	I.D. Fan	5,500	600	950
14	18-007	Sungshin Cement	Danyang Plant	#6 R/M I.D. Fan Hardfacing	Impeller	13,080	900	3,000
15	18-008	Sungshin Cement	Danyang Plant	#5 Kiln I.D. Fan Hardfacing	Impeller	16,200	690	2,800
16	18-014	Sampyo Cement	Samcheok Plant	Cooling Axial Fan (31 Sets)	Axial Fan	200	30	3.7
17	18-016	Sampyo Cement	Samcheok Plant	#2~4 Separator Fan	Separator Fan	4,167	403	450
18	18-034	Sungshin Cement	Danyang Plant	#6 R/M I.D. Fan	Impeller	13,080	900	3,000
19	18-046	Sungshin Cement	Danyang Plant	#5 Kiln I.D. Fan Wear-Resistance (Patent applied)	Impeller	16,200	690	2,800
20	19-008	Sungshin Cement	Danyang Plant	#6 R/M Impeller Repair	Impeller Repair	13,080	900	3,000
21	19-054	Sampyo Cement	Samcheok Plant	7CM CYCLOPOL	Exhaust Fan	4,333	360	450
22	20-037	Sampyo Cement	Samcheok Plant	6K 8 and 9 Rotor	Cooler Fan	1,414	660	300
23	20-043	Sampyo Cement	Samcheok Plant	6K 9 Cooler Fan Rotor	Cooler Fan	1,414	630	300
24	20-057	Sampyo Cement	Samcheok Plant	7K 8 Cooler Fan Performance Improvement	Performance Improvement	996	680	240
25	20-040	Sungshin Cement	Danyang Plant	5K Kiln Impeller Maintenance	Maintenance	16,200	690	2,800
26	21-003	Geosung Industry	Sampyo Cement	Booster Fan Assembly	Booster Fan	433	1,422	37
27	21-004	Sungshin Cement	Danyang Plant	5K Kiln I.D. Fan Casing Manufacturing	Casing	16,200	690	2,800
28	21-015	Sungshin Cement	Danyang Plant	Hot Circulation Fan (500℃)	I.D. Fan	650	150	30
29	21-015	Sungshin Cement	Danyang Plant	Hot Circulation Fan (500℃)	I.D. Fan	650	150	30
30	22-006	Sampyo Cement	Samcheok Plant	3K R/M I.D. Fan Rotor & Suction Cone70 tons Official Seal Main Fan Rotor	Rotor & Suction Cone	3,000	550	450
31	22-017	Sungshin Cement	Danyang Plant	#6 R/M Impeller Overhaul	Overhaul	13,080	900	3,000
32	22-023	Sampyo Cement	Samcheok Plant	#2 ~ 5 CM & RP Sepol Fan	Sepol Fan	4,167	403	450
33	22-037	Sungshin Cement	Danyang Plant	5K Kiln I.D. Fan Rotor	Rotor	16,200	690	2,800
34	22-062	Korea Cement	Jangseong Plant	Bag Filter Fan	Bag Filter Fan	380	495	55
35	23-028	Sampyo Cement	Samcheok Plant	#3K Kiln I.D. Fan High-Efficiency (420℃)	I.D. Fan	6,100	720	1,150
36	23-060	Sampyo Cement	Samcheok Plant	Roll Cooling Fan Assembly	I.D. Fan	9	459	2.2
37	24-008	Sampyo Cement	Samcheok Plant	#6 & 7 Kiln A.S. Fan	A.S. Fan	20	694	7.5
38	24-010	Sampyo Cement	Gwangyang Plant	Bag Filter Fan	Bag Filter Fan	200	285	18.5
39	24-031	Sungshin Cement	Danyang Plant	3K Kiln K-Line I.D. Fan	I.D. Fan	5,500	600	950
40	24-034	Sampyo Cement	Samcheok Plant	5 CM Sepol Fan	Sepol Fan	2,734	362	250
41	24-041	Sampyo Cement	Samcheok Plant	4,5K Coal Mill Hot Gas Fan Rotor	Rotor	2,834	280	270
42	24-048	Sampyo Cement	Samcheok Plant	7K Carbon Reduction Facility Cooling Fan	Cooling Fan	687	1,122	210
43	24-064	Sampyo Cement	Samcheok Plant	#2 ~ 5 CM & RP Sepol Fan	Sepol Fan	4,167	403	450
44	24-067	Sampyo Cement	Changwon Plant	Air Slide Fan	Air Slide Fan	25	550	5.5
45	24-075	Sampyo Cement	Gwangyang Plant	Hot Gas Fan Rotor	Rotor	166	204	11
46	25-003	Sampyo Cement	Samcheok Plant	6K Crank Bag Filter Fan	Bag Filter Fan	566	430	75
47	25-010	Sampyo Cement	Pohang Plant	Air Slide Fan	Air Slide Fan	12	550	3.7
48	25-012	Sampyo Cement	Samcheok Plant	4,5K Kiln I.D. Fan	I.D. Fan	9,000	918	1,900
49	25-020	Sampyo Cement	Samcheok Plant	6K Cooler Line – Cooling Fan	Cooling Fan	687	1,122	210
